Pyramidal roof I'm doing a pretty complex model of a two-level attic apartment with a nighmarishly complex roof. It's fun!  The major stoppage point now is that I need a pyramidal roof for a tower.Has anyone seen anything like that? If not, can I get recommendations for the easiest way of creating it? I don't think it's possible withing Sweet Home 3d itself, at least I can't figure out a way. |
| Posted by sclee at May 23, 2012, 10:01:33 AM |
|
Re: Pyramidal roof Please refer to the youtube website: http://www.youtube.com/user/MrScleea/videos It is a traditional Chinese interpretation, I hope help to you. |
| Posted by mrtower at May 23, 2012, 11:55:41 AM |
|
Re: Pyramidal roof Ah, of course, you make each side out of two right-angle triangles! Clever! Thanks! |
| Posted by mrtower at Jun 24, 2012, 6:05:11 PM |
|
Re: Pyramidal roof OK, I'm back on this, and sure, that works, but... of course the roof isn't actually pyramidal, because it intersects with a sloping roof (or rather two, since it's in a corner. And that part I'm not able to do. The front of the tower is fine, and the backside, but the sides end up with a shape that has no 90 degree angles anywhere, and I can't think of a way to do this. The roof is actually this one: http://www.nablichu.pl/apartament%20B.html There are some more, bad pictures on the site, but it's all flash so I can't link to them. Any ideas appreciated. I even thought about modelling this roof in some 3D model software, but I tried a whole bunch, and to be honest I think it will take months to learn how to use those, they are completely incomprehensible, so I'm back in trying to do this directly in Sweet Home 3D. |
| Posted by Lynn22 at Jun 24, 2012, 7:03:49 PM |
|
Re: Pyramidal roof It's a very nice development. If you don't find a solution let me know and I'll model the roof for you in a 3d modeling package, no problem. |
| Posted by sclee at Jun 24, 2012, 7:23:08 PM |
|
Re: Pyramidal roof I can download pictures, but I am sorry, I don't really understand your question, Can you marked on the pictures? |
| Posted by mrtower at Jun 24, 2012, 7:56:27 PM |
|

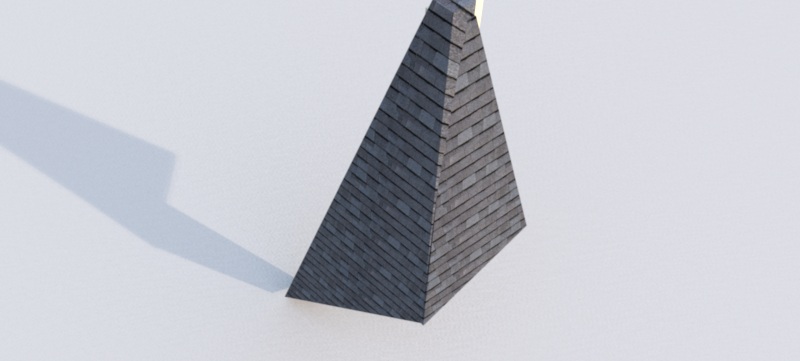

Re: Pyramidal roof Sure. Here is what I get if I just take a simple pyramidal roof:  As you can see, the pyramid will descend into the room. Therefore I must get rid of everything under the roof, marked in red here:  The problem is the area marked in blue. I'm not able to create anything like that, since all sides are sloping in some way. It doesn't help if you bisect it in two, because you still have two sides sloping in the resulting section, and walls can only have one side out of four sloping. |
| Posted by sclee at Jun 25, 2012, 8:29:06 AM |
|
Re: Pyramidal roof V3.4 released flip feature, so you can use. See YouTube web: Click Here More: Click More ----------------------------------------
(48262 bytes)
(Download count: 4868)
----------------------------------------
(19342 bytes)
(Download count: 4702)
|
| Posted by mrtower at Jun 25, 2012, 10:28:00 PM |
|
Re: Pyramidal roof OK, I hope to get time to upgrade soon; I'm using 3.1 at the moment. Also interesting idea to use the floor to make a piece. I did also find a 3D software: "Misfit model 3D" which is actually possible to understand and use for normal humans. It's quite primitive, but I succeeded in importing the pyramidal roof, and cutting away the correct parts. So I'll soon have my roof ready. :-) |
| Posted by mrtower at Jun 25, 2012, 10:33:23 PM |
|
Re: Pyramidal roof (Although when I use Misfit, the textures disappear, which is OK for me as I only really are interested in the insides). |
|
|
