3D Ceiling Fan (Lighting)
I'm modeling my house and although there is a similar fan design in SH3D it does not have a light option built-in. I can't seem to add lights around it without making the globe look black in areas. Is there a free model compatible with SH3D of a ceiling fan similar to this that lights? If not a globe light fan, a separate cluster of lights might be acceptable but I prefer a 4-bladed fan. I've been looking all over the place.
Or any tips for properly lighting the stock SH3D fan without looking fake would be appreciated. I wish it's ball was translucent so I could put a single light inside.
----------------------------------------
Steve N Mavronis - Retired PC Tech
Finland
Joined: Mar 28, 2019
Post Count: 50
Status:
Offline
Re: 3D Ceiling Fan (Lighting)
Quick and dirty solution: - make ceiling fan ball material (CeilingFan6900_4_4) invisible - replace ball with transparent ball (same place and dimensions)
Transparent balls can be found from SketcUp 3D Warehouse and they seem to be problematic but here are one result:
USA
Joined: Jan 9, 2021
Post Count: 178
Status:
Offline
Re: 3D Ceiling Fan (Lighting)
Hmm... Can't get rid of that black hole chrome ball effect and any brighter than 25% washes out the fan blades. After studying what you guys did, I simply made the fan's light globe invisible and added the SH3D pendant hanging ball with it's ceiling cable invisible. I haven't tried different renderers yet. What's the best to use?
This is to visualize our kitchen remodel to be scheduled soon, but I'm working on modeling my whole townhouse.
----------------------------------------
Steve N Mavronis - Retired PC Tech
Finland
Joined: Mar 28, 2019
Post Count: 50
Status:
Offline
Re: 3D Ceiling Fan (Lighting)
Yafaray is my favourite render, usually it handles lighting better but is also slower in some cases. I still have problems with that same 'black hole chrome ball effect', I try something new.
France
Joined: Nov 7, 2005
Post Count: 9420
Status:
Offline
Re: 3D Ceiling Fan (Lighting)
As explained in this thread, you could try to set illum to 0 for the material CeilingFan6900_4_4 in the MTL file of the fan that you use.
----------------------------------------
Emmanuel Puybaret, Sweet Home 3D creator
USA
Joined: Jan 9, 2021
Post Count: 178
Status:
Offline
Re: 3D Ceiling Fan (Lighting)
I read parts of that thread about using illum=0 although with an exported ball pendant lamp and Kd 1.0 1.0 1.0 for white in the MTL. I get this effect at least with a white-ish light ball in the "original" pendant ball lamp. I got this result but now that I'm re-reading Puybaret's suggesting again I should go back and export the fan model itself! What I did was easy but too many steps and no glow effect. Let me test this again your way since I misread it slightly. ;)
----------------------------------------
Steve N Mavronis - Retired PC Tech
USA
Joined: Jan 9, 2021
Post Count: 178
Status:
Offline
Re: 3D Ceiling Fan (Lighting)
Oh before I forget how to I set the Global illumination path? Is that a separate plug-in?
----------------------------------------
Steve N Mavronis - Retired PC Tech
USA
Joined: Jan 9, 2021
Post Count: 178
Status:
Offline
Re: 3D Ceiling Fan (Lighting)

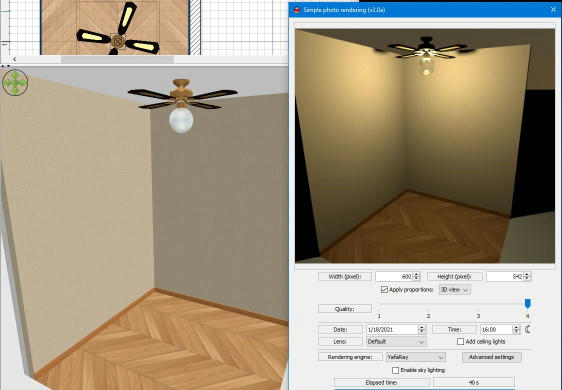

Editing the MTL file of the exported ceiling fan directly gave me this undesired result - only downward lighting. I'm not sure what the other default parameters are in the CeilingFan6900_4_4 section:
newmtl CeilingFan6900_4_4 illum 0 Ka 1.0 0.964706 0.815686 Kd 1.0 1.0 1.0 Ks 1.0 1.0 1.0 Ns 128.0
----------------------------------------
