fill space in between internal/external walls
Hi,
I drew the external walls from the floor plan. Then I created the rooms with internal walls. Now I find myself with massive gaps which are not nice to look at.
It's an old house, so some walls are very thick (60/70cm). Also, as you can see form the pic the thickness is not consistent.
Continuously changing the wall thickness wasn't very convenient.
In summary, is there a way to fill the space in between?
The only alternative I can think of (to fix this after the fact) is to set the wall thickness to something average (eg 25cm) and draw layers and layers of walls filling the gaps. It should work, I just thought it's not a very elegant solution.
UK
Joined: Jan 6, 2018
Post Count: 677
Status:
Offline
Re: fill space in between internal/external walls

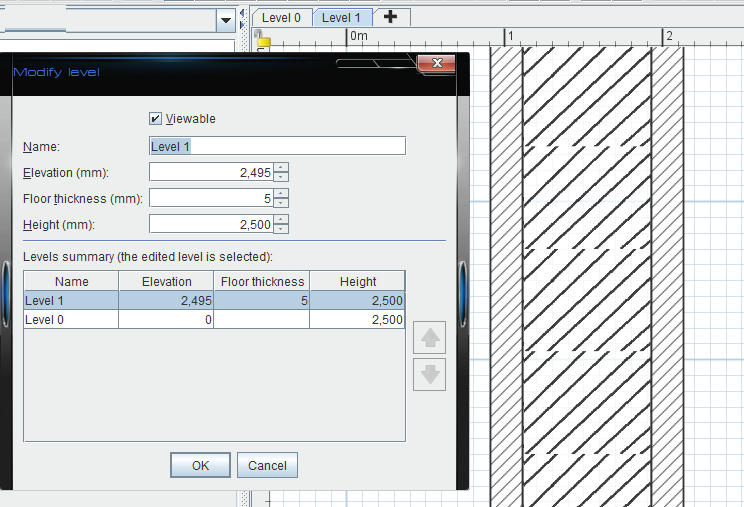

You could try this Create a level 5mm below the height of your wall with the floor thickness set to 5mm draw walls to fill in the gaps create a texture, something like "Paint" draw black diagonal lines on it import the texture and use it as the floor texture remember to un-check the box's for area and ceilings when modifying the room. Here is a very quick attempt
France
Joined: Nov 7, 2005
Post Count: 9420
Status:
Offline
Re: fill space in between internal/external walls
And why not simply drawing an additional thick wall to fill the space. Walls with the same pattern which overlap are drawn in the plan as it was only one wall. You could also look at this tip.
----------------------------------------
Emmanuel Puybaret, Sweet Home 3D creator
