Re: how to make a light like this?
fhoofman,
As far as I know it's not possible to make such a lamp in SH3D. The problem is the way the rendering handles transparency.

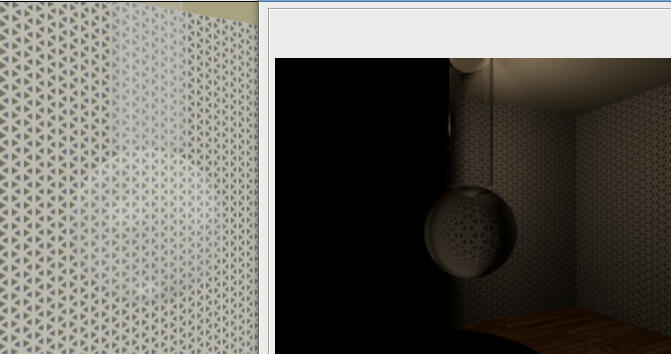

I prepared a transparent cylinder and a transparent sphere and then I put 7 warm lights inside them. In the picture below you can see the 3D window on the left and the rendered image on the right, made with the advanced render plug-in.
The light you can see comes from one of the lights inside the cylinder that sticks through the cylinder wall. I corrected the placement of the lights so that they are all inside the cylinder, and the resulting picture is absolutely, completely dark.
So, if you want lamps similar to what your picture shows, you will have to build your model in SH3D, then export it in OBJ format. You can then import your model in a rendering program that correctly handles transparency, such as (among many others) Blender.
Here's some quick examples, (Please note, your final renders should look even better, as these were produced with slightly lower quality sample settings, while testing various settings to get the best results with caustics, for the plugin)
on the second image the light is inside the vase. The glasses in the last image are actually inside a glass door cabinet, so light is coming through the doors, and through the glasses.
You can control the light bulbs light intensity, by ticking the 'Use rotation and power knob' and rotating the bulb from 0 - 359
Joined: Jul 16, 2010
Post Count: 50
Status:
Offline
Re: how to make a light like this?
Very impressive, db4tech (As also hansmex image will be, with the new plugin. :-)
fhoofman: You could make an array of lights -- in this case 3-4 lights in a row.
Alternatively, you could open the xml file created by the plugin - I assume there's one - and change the light to array. But this would mean installing and learning a bit about Sunflow ;-)
Netherlands
Joined: Sep 26, 2009
Post Count: 3991
Status:
Offline
Re: how to make a light like this?
Emmanuel, tech4lite,
So I was a bit too soon with my answer... hehe
I tried to download the new plug-in, but although the text says version 1.6, the file is called 1.1 and when installed seems to take me back to the old days... I don't see any of the new controls.
Until then I will have to hide my enthusiasm...
Hans
----------------------------------------
Hans
UK
Joined: May 3, 2010
Post Count: 223
Status:
Offline
Re: how to make a light like this?
Ah yes, that is a small snag! I'm sure Emmanuel will fix the link as soon as he reads this thread but just in case, I've also fired off a quick e-mail to let him know.
France
Joined: Nov 7, 2005
Post Count: 9420
Status:
Offline
Re: how to make a light like this?
Sorry for the bad link. That's a wrong copy / paste I made. Here's the right link to the Advanced rendering plug-in 1.6.
----------------------------------------
Emmanuel Puybaret, Sweet Home 3D creator
Netherlands
Joined: Sep 26, 2009
Post Count: 3991
Status:
Offline
Re: how to make a light like this?
Emmanuel, db4tech,
WOW, I'm seriously impressed!! Easy to use, impressive results!!

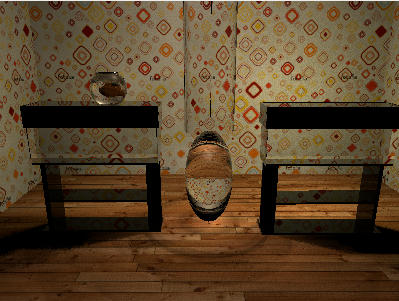

Attached my first test result:
The aquaria have an infill of a transparent green box. Behind the left one a 25% light, at right 50% light. On top of the left aquarium is the fish bowl (the fish seems a little big?). In the middle a transparent sphere and cylinder with 5 20% lights in them.
The result looks very natural.
thoofman: I'll see what I can do to approximate better the result you wanted.
Hans
----------------------------------------
