Joined: Jul 16, 2014
Post Count: 4
Status:
Offline
How to delete a room?
I created a room (surface) in my home but i can't select it to delete it. when i trie to select the surface, my walls are selected. i tried with the TAB button but that don't work. thanks for your help.
INDIA
Joined: Oct 28, 2013
Post Count: 137
Status:
Offline
Re: How to delete a room?
Do you have the same problem like this?. Then use the unlock button(Ctrl+Alt+L ) on top left corner in 2D plan drawing window. Choose Edit-> Select all/Select all at all levels then by hold shift and click on objects(like compass,particular wall or furniture) to toggle selection. Then press Delete button to delete those that you don't want. Else please give more explanation or can you attach your work file.?
----------------------------------------
Joined: Jul 16, 2014
Post Count: 4
Status:
Offline
Re: How to delete a room?
hello , my problem was not the locking of objects. after that i tried the "select all" and then "shift and select" option but that doesn't work. my problem is that i can't select a surface that is INSIDE a room. when i trie to select it is always the wall of the room that is selected. how do i attach my workfile (sh3d) in this reply?
Joined: May 12, 2013
Post Count: 1545
Status:
Offline
Re: How to delete a room?
This tread gives an example of how to share files.
ok
PS: Are you sure the room is not selected when you click it (with the Select 'pointer')? Maybe it just looks as if walls are selected because of the (blue) select colour along the edges, while you really have selected the room.
INDIA
Joined: Oct 28, 2013
Post Count: 137
Status:
Offline
Re: How to delete a room?
the "select all" and then "shift and select" option but that doesn't work
Shift+click to deselect something from a set of selection.
I can't select a surface that is INSIDE a room. when i trie to select it is always the wall of the room that is selected.
By default there is no selectable floor, you need to draw a floor using Create rooms tool. Later by modify rooms section apply the texture.
How do i attach my workfile (sh3d) in this reply?.
Follow the instructions by hansmex to attach a file. By simply : Upload the file in mediafire.com Copy file link(file location). Paste in post when you replay.
----------------------------------------
Joined: Jul 16, 2014
Post Count: 4
Status:
Offline
Re: How to delete a room?

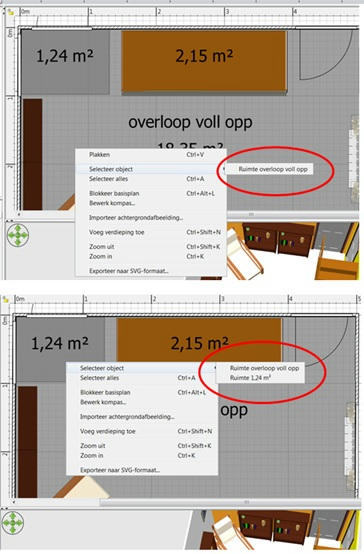

After a time of holiday in Copenhagen i tried again to select my surface and there it was!!! The upload via mediafire didn't work but i managed to create a picture to show what's happening: i tried to select the surface of 1,24m² by clicking in it, but it was always the big room (walls) that was selected. Now i tried to select with a right mouseclick but that didn't worked when i pointed the mouse in the room somewhere. Finally i pointed the mouse in the surface of 1,24m² and now i could select between different surfaces!. See my picture to know what i mean because i am dutch and my english is not super... thanks to everyone who tried to help!
[Note from moderator: updated link to image]
----------------------------------------
[Edit 1 times,
last edit by Puybaret at Aug 10, 2014, 10:01:17 AM]
Romania
Joined: Apr 24, 2014
Post Count: 630
Status:
Offline
Re: How to delete a room?
1. I reproduce your issue. I suppose you draw first the smaller rooms and then the largest room on top of the other two. In this case you will can select only the big one. If you need such surfaces draw it order from the larger to smaller to be able select them individually. 2. The tutorial for posting file trow mediafire.com must be updated because ther is few diferent steeps. Dorin
---------------------------------------- A computer program does what you tell it to do, not what you want it to do. Murphy's Law When all else fails, read the instructions. Murphy's Law If you don't like "AS IS", DIY. Dorin's law
INDIA
Joined: Oct 28, 2013
Post Count: 137
Status:
Offline
Re: How to delete a room?
I think Dorin is right The smaller room/floor is lowwer. So you can't slect it. Drag select wall, room/floor, furniture.. which including small room. Holding keyboardShift+click the wall and other(not small room) to deselect from selection.
2. The tutorial for posting file trow mediafire.com must be updated...
I am very talkative person but I am not good in English...I am sorry if I made any mistake..
----------------------------------------
i tried again to select my surface and there it was!!!
The upload via mediafire didn't work but i managed to create a picture to show what's happening:
