In need of assistance
Hi

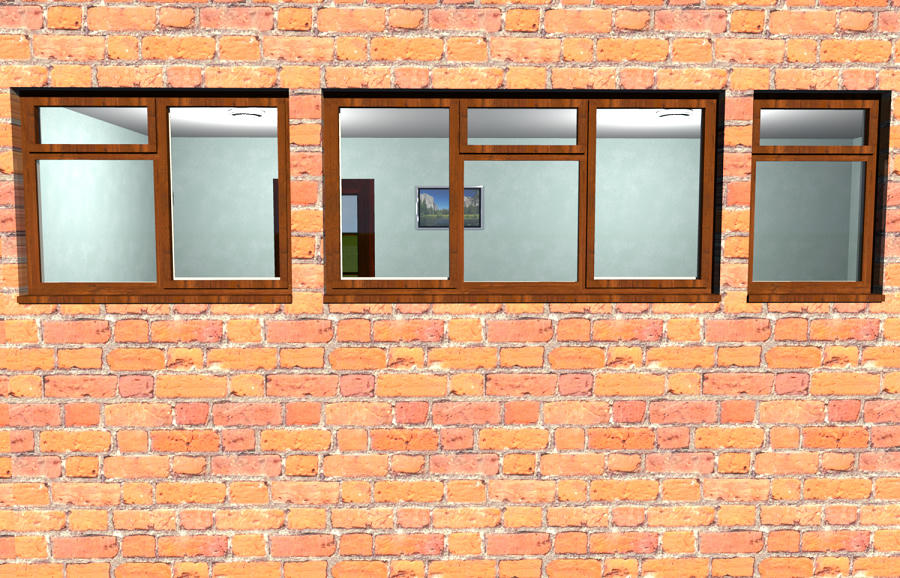

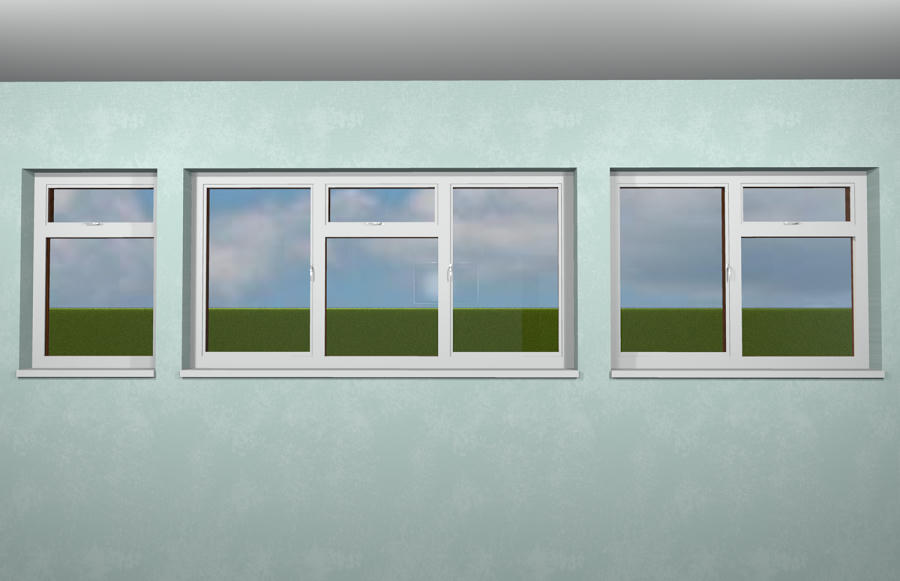

I have made some new windows, which i hope to use and share. Unfortunately i have no idea at all what to do to make them user friendly, they are at present just an assembly of box's. Here are the windows :-

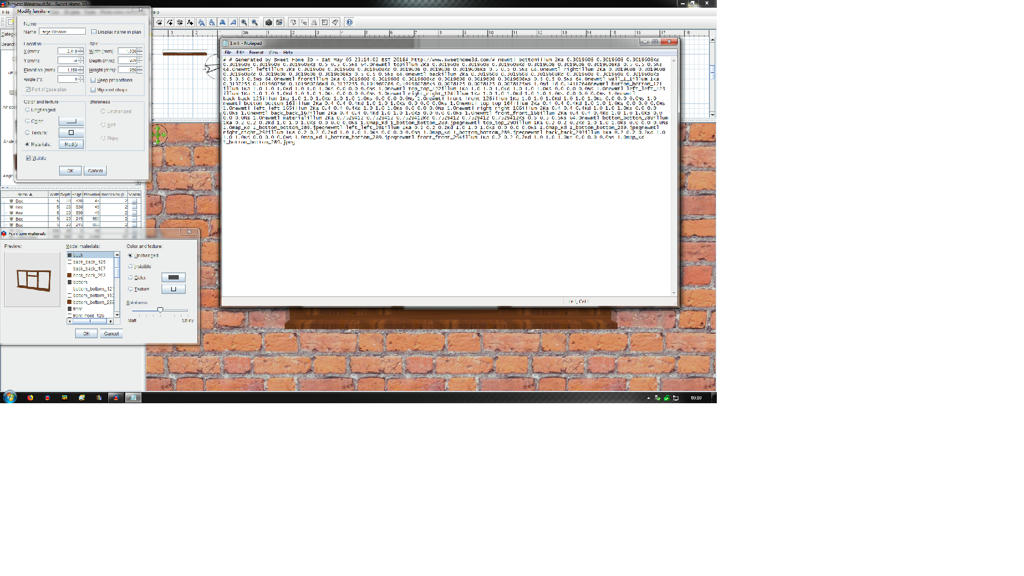

and here is the issue
If i (well someone else ) could get the modify box to show inner, outer, glass, handles and edge, or explain why i cannot get it to work this way, then i would be eternally grateful.
Romania
Joined: Apr 24, 2014
Post Count: 630
Status:
Offline
Re: In need of assistance
The trick is to name the texture or color with the name of object part. e.g. The 4 boxes from window frame must have the texture name "frame" or whatever and so on. I do this usually in AOI to modify all in one step but I think is possible too in SH3D but in multiple steps. So, You have 2 options: 1. Try to do it Your self (I seen Your work in Gallery and I think You can do it) or 2. Put the obj and mtl file somewhere to be downloaded for modification.
---------------------------------------- A computer program does what you tell it to do, not what you want it to do. Murphy's Law When all else fails, read the instructions. Murphy's Law If you don't like "AS IS", DIY. Dorin's law
UK
Joined: Jan 6, 2018
Post Count: 677
Status:
Offline
Re: In need of assistance
Hi Dorin. Thank you for the quick response, i would like to have a go, i don't believe i will be successful as i am no good with numbers. That said, looking at the mtl, what part defines that objects color/texture, here is an example :-
0 map_Kd Small_Window_bottom_bottom_87.jpeg
newmtl right_right_90 illum 1 Ka 0.2 0.2 0.2 Kd 1.0 1.0 1.0 Ks 0.0 0.0 0.0 Ns 1.0 map_Kd Small_Window_bottom_bottom_87.jpeg
newmtl back_back_91 illum 1 Ka 0.2 0.2 0.2 Kd 1.0 1.0 1.0 Ks 0.0 0.0 0.0 Ns 1.0 map_Kd Small_Window_bottom_bottom_87.jpeg
newmtl front_front_92 illum 1 Ka 0.2 0.2 0.2 Kd 1.0 1.0 1.0 Ks 0.0 0.0 0.0 Ns 1.0 map_Kd Small_Window_bottom_bottom_87.jpeg
newmtl wall_1_1 illum 2 Ka 0.8980392 0.8980392 0.8980392 Kd 0.8980392 0.8980392 0.8980392 Ks 0.5 0.5 0.5 Ns 64.0 Ni 1 d 0.14117646
newmtl bottom_bottom_195 illum 2 Ka 0.3019608 0.3019608 0.3019608 Kd 0.3019608 0.3019608 0.3019608 Ks 0.5 0.5 0.5 Ns 64.0
newmtl top_top_196 illum 2 Ka 0.3019608 0.3019608 0.3019608 Kd 0.3019608 0.3019608 0.3019608 Ks 0.5 0.5 0.5 Ns 64.
mmmmm that looks different than the note pad version.
Looking at the way that now appears, am i right in assuming that each side of each box starts with the word "new" and those that have a jpeg are therefor textured? I think from what you said i could rename each white part to inner, instead of back back or front front etc and each textured part to outer, or start all over again.
Romania
Joined: Apr 24, 2014
Post Count: 630
Status:
Offline
Re: In need of assistance
Is not so simple. 1. MTL file (material textures library) is OK to open/edit with notepad. - newmtl is a kind of tag; the name came after (right_right_90) - this name are used several times in OBJ file; You must modify both. - don't care about numbers; it's some codes for color except dose for glass which describe the transparency (d 0.14117646) - indeed the JPG is the texture but I suggest to not set it until the final step wile we can modify when we use it; use only colors to be more easy identifiable. 2. If You want to use only SH3D and the texturable box You must build step by step: e.g.For simple window: -fist make the frame (5 boxes), align them correctly, GROUP them and then export as obj. -edit the MTL and OBJ file by renaming all the textures "frame". -re import as furniture and in modify texture You must have only one entry "frame". 3. Repeat these procedure for "window", "glass", "knob", "ledge" and "hinge". 4. At the end import them all, arrange correctly, group and export as obj. 5. Import the furniture and see what You do Otherwise learn AOI and make it there. I will tray to make a library with windows You suggest; I'm interested in this. PS. I suppose the knob must be on the other side to be usable.
---------------------------------------- A computer program does what you tell it to do, not what you want it to do. Murphy's Law When all else fails, read the instructions. Murphy's Law If you don't like "AS IS", DIY. Dorin's law
UK
Joined: Jan 6, 2018
Post Count: 677
Status:
Offline
Re: In need of assistance

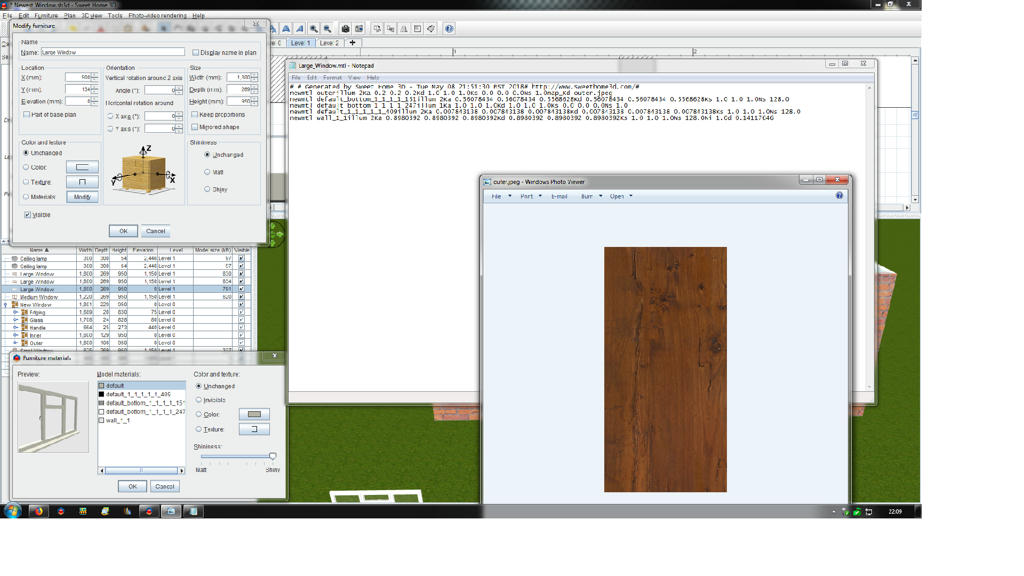

Thank you Dorin Very very helpful, but, i am missing something. Here is an image of the progress i have made so when i now open the "modify" box i see the 5 items i want, but they are all called Default, which is probably my fault . hopefully you can see the top line on the mtl which reads :-
newmtl outer illum 2 Ka 0.2 0.2 0.2 Kd 1.0 1.0 1.0 Ks 0.0 0.0 0.0 Ns 1.0 map_Kd outer.jpeg
and the image named "outer". What have i missed? Thx Mike
Romania
Joined: Apr 24, 2014
Post Count: 630
Status:
Offline
Re: In need of assistance
1. You've made good progresses 2. On notepad You've right -it looks bad. Verify the notepad settings because don't interpret correctly the end of line and the spaces. You can use other text editor (LO writer or MSWord). 3. My advice is to NOT use any texture in that stage, only different colors. The user could set their own preferences after insert it in plan. 4. If You modify the name ONLY in mtl file of course You've loose the transparency; You MUST also modify the name in obj file (in text editor). e.g.: in Window.mtl #Produced by Art of Illusion 3.0.3, Tue May 08 14:32:53 EEST 2018 newmtl window illum 1 Ka 0.2 0.2 0.2 Kd 1.0 1.0 1.0 Ks 0.0 0.0 0.0 Ns 1.0 Ni 1.0 d 0.26666665 #this indicate the transparency
in Window.obj #Produced by Art of Illusion 3.0.3, Tue May 08 14:32:53 EEST 2018 mtllib Window.mtl s 0 g Window usemtl window#this indicate which texture to use for next object v 0 0 0 v 0 0 10 ..... ..... etc
Hope is useful.
---------------------------------------- A computer program does what you tell it to do, not what you want it to do. Murphy's Law When all else fails, read the instructions. Murphy's Law If you don't like "AS IS", DIY. Dorin's law
Romania
Joined: Apr 24, 2014
Post Count: 630
Status:
Offline
Re: In need of assistance
No, that mean You need to modify BOTH files in notepad to use the same name for texture in .mtl and in .obj.
