Re: Streets and Roads
Just draw a room the size and shape you need your road to be, modify it to not show a ceiling and texture the floor with 1 of the "pavement" textures, in the recently released library 1.7 there are some road markings too
Australia
Joined: May 21, 2017
Post Count: 77
Status:
Offline
Re: Streets and Roads
You use the same trick using curved walls. Draw the shape with walls so that the area is enclosed. Change to the room tool thing, double click in the enclosed area to create the room. Change the wall height to something along the lines of a kerb or delete them altogether. Modify the room as for the road.
UK
Joined: Jan 6, 2018
Post Count: 677
Status:
Offline
Re: Streets and Roads

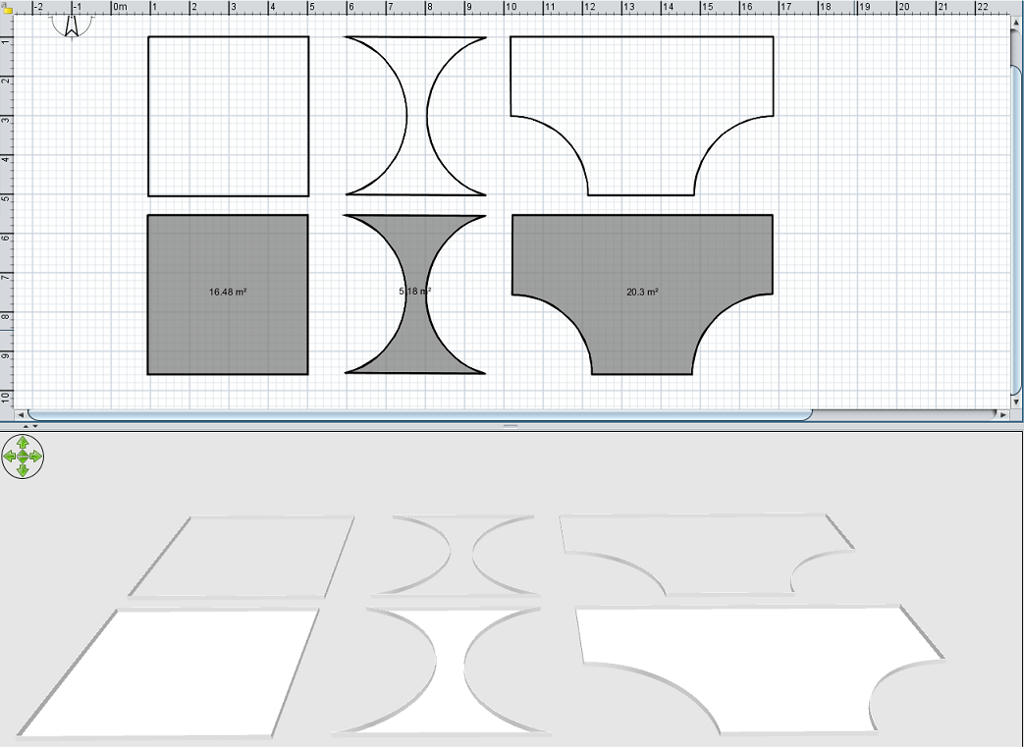

Not sure what you refer to as "add payment", are you using google translate? Look at this image
The top row is 3 shapes created with walls, the 2nd has an arc added to the 2 side walls, the 3rd was made with 6 walls, this also has an arc on 2 of its walls. Arcs can be added either in the walls modification window, you will see Arc in the bottom right corner or move your mouse pointer to the centre of a wall, where the wall has an arrow on one side, your pointer will change to a double arrow, you can then left click your mouse and drag the wall to form your arc. Once you have achieved the shape you need select the room tool and double click within the borders formed by the walls, remember, for this to work all the walls MUST be joined.
This method, when used on a level with an elevation of 0 will give you a shape that has no depth. If you use the same method, but at an elevated level where the floor has a depth, the shape you create will have that depth, very handy for creating custom kitchen worktops, steps, lintels, copings etc. For these you can export your room and import it as an object. And don't forget you can use the room tool to create a shape without the use of walls, just select the tool and draw in your 2d window by randomly clicking the mouse
Western Europa
Joined: Mar 29, 2014
Post Count: 2614
Status:
Offline
Re: Streets and Roads
Hi,
Just look at the exteriors of my projects. I created few different streets with plenty of details… .
----------------------------------------
