French window in alcove

Hi All,

I've been using SH3D on and off for a while and im trying to build up my house in sweet home 3d, we had a rough one before moving in but i would like to make one as accurate as possible for future home planning and decoration ideas etc.

On our back wall we have a french window which is set into a little alcove or recess (https://imgur.com/a/NlaC6Hz) see picture linked for example.

I'm not sure the best way to do this.

I tried making the walls that jut out shorter but this resulted in glitches in how it drew probably because this was wrong.

I then tried the guide using an invisible serving hatch, I end up having to make the whole back wall as thick as the depth of recess. I also seem to lose my floor texture which im not sure is right?

https://imgur.com/a/7Pdhp7X

https://imgur.com/a/s3p6qcO


Am i missing a trick here?

Any help would be appreciated.

THanks
[Dec 30, 2019, 6:36:27 PM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
VeroniQ
Advanced Member



France
Joined: Mar 3, 2015
Post Count: 882
Status: Offline
Reply to this Post  Reply with Quote
Re: French window in alcove

Did you try this tip ?
Hope it will help.
V
[Dec 30, 2019, 11:49:30 PM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
dorin
Advanced Member
Member's Avatar

Romania
Joined: Apr 24, 2014
Post Count: 630
Status: Offline
Reply to this Post  Reply with Quote
Re: French window in alcove

In my apartment all the doors and windows are in such position.
To solve this I modify PluginFurnitureCatalog.properties and add doorOrWindowWidthDepthDeformable#NN=false (where NN is the number of furniture).
Also, for some of them, I need to modify depth#, doorOrWindowWallThickness#, doorOrWindowWallDistance#

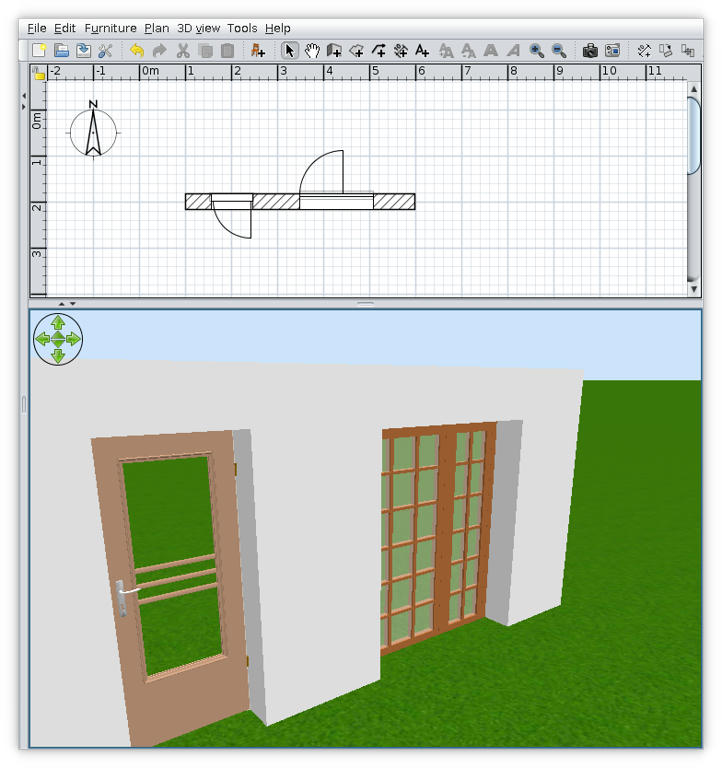

The result is something like this:

----------------------------------------
A computer program does what you tell it to do, not what you want it to do. Murphy's Law
When all else fails, read the instructions. Murphy's Law
If you don't like "AS IS", DIY. Dorin's law
[Dec 31, 2019, 7:01:30 AM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
Cannoloz
Newbie
Member's Avatar

Italia
Joined: Dec 26, 2019
Post Count: 12
Status: Offline
Reply to this Post  Reply with Quote
Re: French window in alcove

Did you try this tip ?
Hope it will help.
V


Very nice tips, I did something close to the second for my windows but this is better.
Thank's!
