CZ
Joined: Aug 29, 2018
Post Count: 3
Status:
Offline
Angled walls
Hi, I'm new here and first of all I'd like to say what a brilliant piece of software this is, being an advanced Illustrator and fairly experienced SketchUp user, I was up and running in very little time, very intuitive unlike any other free 2D/3D CAD package out there ...

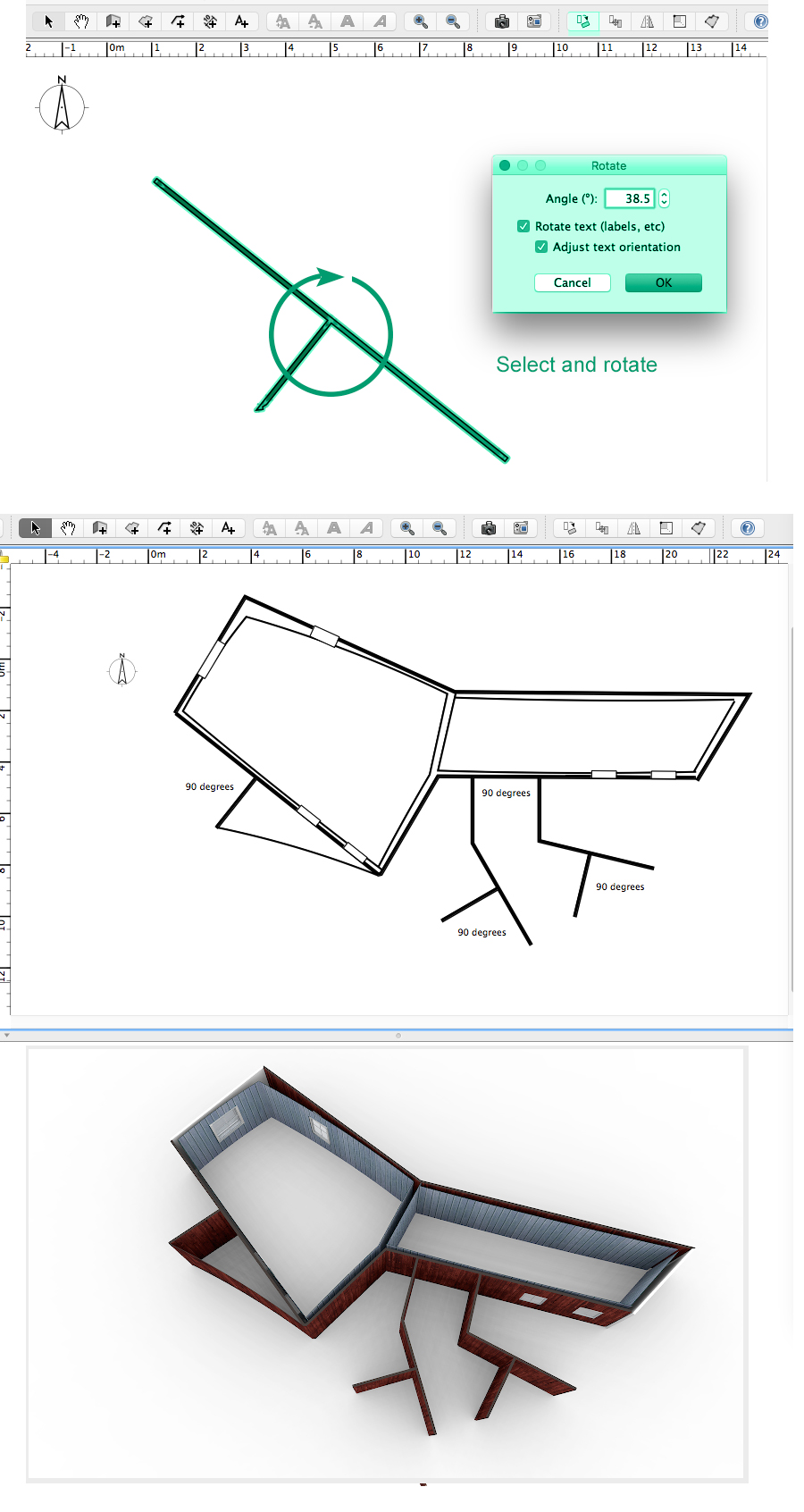

My questions are: - how can I draw a wall perpendicular to an angled wall? - how do I find an angle of an angled wall (generated from a new room drawn based on an imported floor plan)

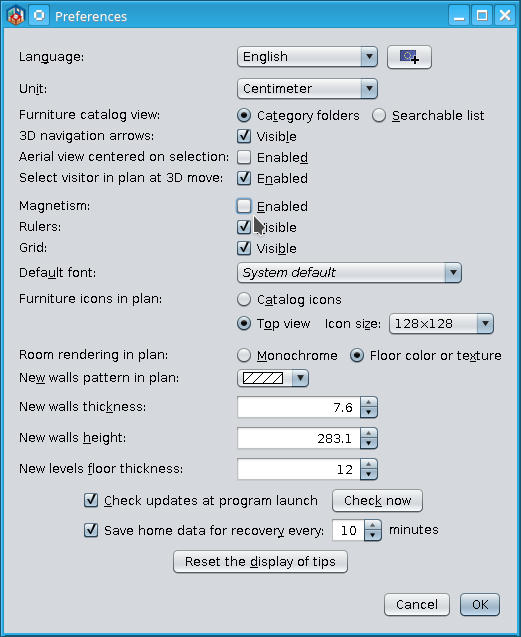

Also is there a way to draw a wall from a pair of coordinates to naother pair of coordinates? Is there something like magnetic guide lines that can be placed to a particular coordinate?
Finland
Joined: Aug 29, 2018
Post Count: 3
Status:
Offline
Re: Angled walls
No replies yet, and perhaps someone more involved with Sweet Home 3D will reply.
Anyways I tried to do what you need to do (as far as I understand it) and it seems Sweet Home 3D does not offer tools to do what you need to do directly. Angle information is not available in the wall dialog (and would definitely come in handy sometimes).
If you drag an endpoint of a wall (or click-and-hold, but do not drag if you do not actually want to move it), you can see the angle of the wall.
CZ
Joined: Aug 29, 2018
Post Count: 3
Status:
Offline
Re: Angled walls
Thanks for a reply and trying. I also need walls whose faces aren't parallel, which is not unusual in older houses in my neck of woods, and which doesn't seem possible with Sweet Home 3D either, so I have to resort to SketchUp. It's quite a shame that the software actually cannot be used unless all the walls are perpendicular or parallel ...
Romania
Joined: Apr 24, 2014
Post Count: 630
Status:
Offline
Re: Angled walls

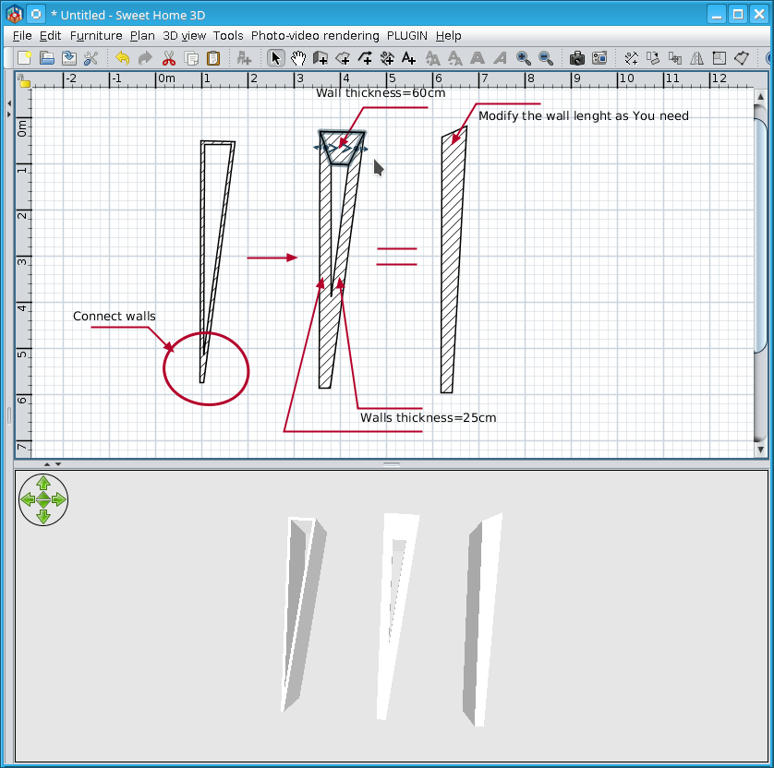

1. "Definitions of shame noun a painful feeling of humiliation or distress caused by the consciousness of wrong or foolish behavior". I think is not correct for a free software. 2. I have some irregular walls on my apartment. I use this trick:
---------------------------------------- A computer program does what you tell it to do, not what you want it to do. Murphy's Law When all else fails, read the instructions. Murphy's Law If you don't like "AS IS", DIY. Dorin's law
CZ
Joined: Aug 29, 2018
Post Count: 3
Status:
Offline
Re: Angled walls
@dorin Sorry for not being a native English speaker, so I guess more appropriate word would have been 'unfortunate'?
@Ceciliabr I used to use Autocad some 30 years ago, so yes, I know. I can afford neither the price nor the time spent climbing that learning curve, I have plenty of those with stuff like coding.
@everyone Thanks a lot for the tips
I still appreciate how easy SH3D is to get up and running compared to pretty everything else, and I know not everything can be made completely intuitive, so it's great there's a place like this forum where one might ask questions and expect useful answers : )
